UV camera for industrial inspection

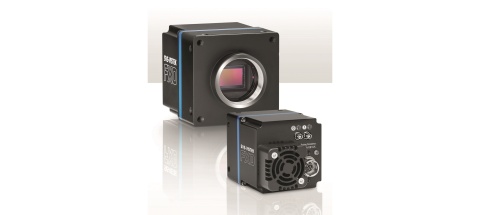

The UV camera fxo487 from SVS-Vistek has a resolution of 2840 x 2840 pixels and a maximum frame rate of 194 fps. In the past, a spectrum of approx. 200 to 400 nm was only a sensible option in exceptional cases due to the low resolutions possible. With the Sony IMX487-AAMJ-C sensor, a powerful technical basis for UV image processing systems is now available, which SVS-Vistek uses in its fxo487 cameras. Due to the high resolution of 8.1 megapixels, this camera allows the capture of high-resolution UV images that allow reliable identification of product defects in the non-visible UV wavelength range.
The fxo487MCX12-2C with two CoaXPress-12 connections ensures lossless transfer of the resulting data volumes as well as low trigger latency. Technical features of the fxo487 such as the signal voltages, the temperature resistance, the control of the inputs and outputs, the integrated strobe controller and numerous firmware features are geared towards applications in industrial automation. They enable the solution of complex inspection tasks, for example in the battery, semiconductor, glass, recycling, gemstone and automotive industries.
