Bending light with photonic crystals
Photonic device bends light as though it were under the influence of gravity.
A collaborative group of researchers has manipulated the behavior of light as if it were under the influence of gravity. The findings have far-reaching implications for the world of optics and materials science, and bear significance for the development of 6G communications.
Albert Einstein's theory of relativity has long established that the trajectory of electromagnetic waves - including light and terahertz electromagnetic waves - can be deflected by gravitational fields. Scientists have recently theoretically predicted that replicating the effects of gravity - i.e., pseudogravity - is possible by deforming crystals in the lower normalized energy region. “We set out to explore whether lattice distortion in photonic crystals can produce pseudogravity effects,” said Kyoko Kitamura from Tohoku University's Graduate School of Engineering and formerly at Kyoto Institute of Technology.
Photonic crystals possess unique properties that enable scientists to manipulate and control the behavior of light, serving as traffic controllers for light within crystals. They are constructed by periodically arranging two or more different materials with varying abilities to interact with and slow down light in a regular, repeating pattern. Furthermore, pseudogravity effects due to adiabatic changes have been observed in photonic crystals.

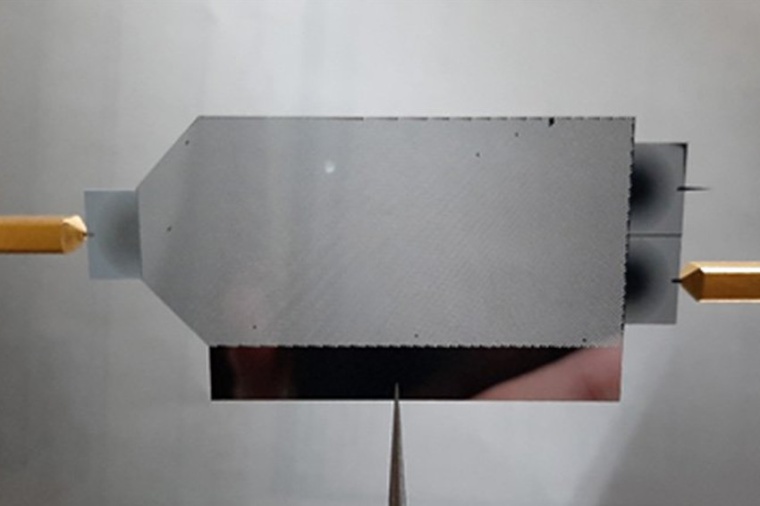

Kitamura and her colleagues modified photonic crystals by introducing lattice distortion: gradual deformation of the regular spacing of elements, which disrupted the grid-like pattern of protonic crystals. This manipulated the photonic band structure of the crystals, resulting in a curved beam trajectory in-medium – just like a light-ray passing by a massive celestial body such as a black hole. Specifically, they employed a silicon distorted photonic crystal with a primal lattice constant of 200 micrometers and terahertz waves. Experiments successfully demonstrated the deflection of these waves.
“Much like gravity bends the trajectory of objects, we came up with a means to bend light within certain materials,” adds Kitamura. “Such in-plane beam steering within the terahertz range could be harnessed in 6G communication. Academically, the findings show that photonic crystals could harness gravitational effects, opening new pathways within the field of graviton physics,” said Masayuki Fujita from Osaka University. (Source: Tohoku U.)
Link: Dept. of Electronics, Kyoto Institute of Technology, Kyoto, Japan
