Evocam board camera
The VCSBC Evocam from Vision Components is an all-in-one smart board-level camera with MediaTek processor for fast and easy vision integration.

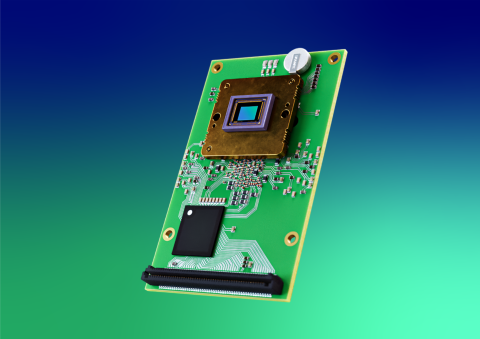

The VC Evocam from Vision Components is a new generation of smart board-level cameras featuring the Mediatek Genio 510 processor. The compact 65 x 40 mm board makes integrating embedded vision faster and easier.
The camera series can be configured with an onboard image sensor or with one or two camera modules connected via cable. Image sensors from the VC-MIPI camera portfolio are available for this purpose. The Mediatek Genio 510 edge AI processor is integrated for direct image processing. It features two ARM Cortex-A78 and four ARM Cortex-A55 processing cores, an ARM Mali GPU, and an NPU with a performance of 3.2 TOPS. Up to 2 GB of RAM, 16 GB of flash memory, and expandability via SD 3.0 enable the processing and storage of extensive image data. The VC Evocam comes with a Debian Linux operating system.
For integration, the VC Evocam features a 100-pin board-to-board connector. This provides the signals for interfaces and processor functions. A minimalist adapter board will be available at launch, featuring power supply, I/Os for triggers and flash, as well as USB and RJ45/LAN. An interface board will follow shortly as a development kit and for prototyping, routing all signals from the connector to physical interfaces.
Vision Components supports customers in the development of custom interface boards as well as in the design-in of the VC Evocam.
