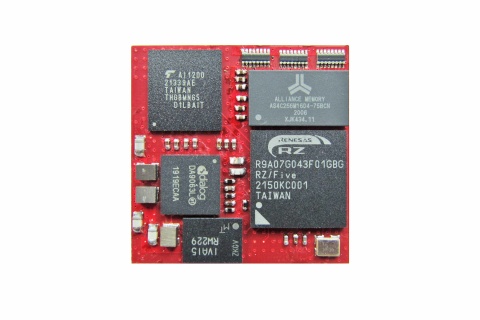

OSM-compatible system-in-packages for industrial controls and IoT

The RZ/G2UL microprocessor contains a Cortex-A55 (1.0 GHz) CPU and a CortexM33 coprocessor, while the RZ/Five has a RISC-V CPU core (AX45MP Single) with 1.0 GHz.

In the smallest S size, the new MSRZ SiP SoMs concentrate extensive functionality on a board of only 30 by 30 mm each. The modules are compliant with SGET's OSM standard and offer an LCD controller. They support 512 MB to 4 GB of DDR4 RAM and 4 GB of eMMC NAND flash. Interfaces include: Camera input (MIPI-CSI), display output (Parallerl-IF), USB2.0 2ch, SD 2ch, CAN (CAN-FD) and Gigabit Ethernet 2-Channel. The temperature range is -25 °C to +85 °C and -40 °C to +85 °C for industrial environments.
