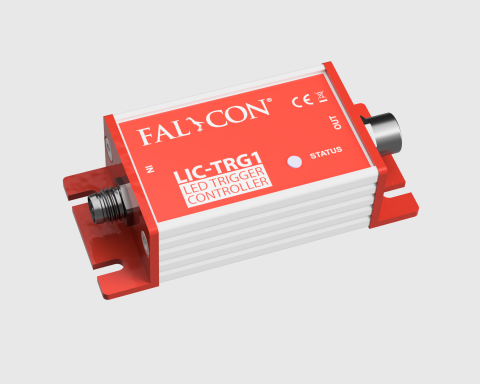

New lighting control

With a power supply of 12-48V, this can control lighting in continuous operation as well as in trigger and strobe mode . In flash mode (strobe), taking into account the duty cycles of 10% and a switching frequency <100Hz, currents of up to 6A can be achieved. The maximum flash duration of 10ms is limited by the controller in strobe mode .

In trigger mode , this can be as long as you like. The controller has a four-pin M8 connector at the input and output. Due to the optocoupler installed at the input, there is also a galvanic isolation. It is triggered in TTL mode with a voltage between 3.3-5V. With a switch-on delay of less than 2us, the LIC-TRG1 enables fast switching.
