Inspection of IR emitters in the far-field range

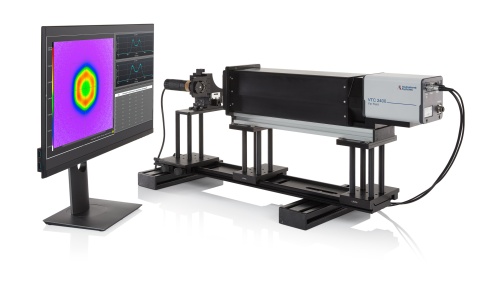

The system consists of a translucent, diffusely scattering screen and a monochrome camera specialised in near-infrared measurements. Visualising the radiation characteristics of the radiation source on an additional screen makes the setup flexible. The traceable calibration of the VTC 2400 also guarantees a minimal error budget. Basic measurement parameters such as the distance to the DUT, the angular field of view or the angular resolution can be adjusted for your own application. This enables reconstruction of the beam intensity distribution and identification of the intensity maximum (hot spot), as required for laser safety evaluation, for example. The camera also features a PTB-traceable radiometric calibration.
