21.07.2022 • Product

High-Speed CoaXPress Camera for Industrial Machine Vision

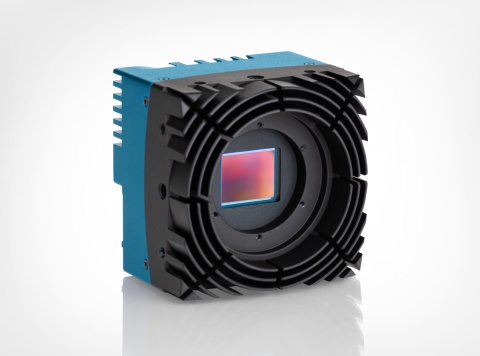

Based on the Gsprint 4521 CMOS sensor from GPixel with global shutter, the Eosens 21CXP2 combines a resolution of 21 megapixels with a pixel size of 4.5 µm, enabling up to 230 fps when using all 5,120 x 4,096 pixels. By reducing the sensor area read out, a frame rate of 5,543 fps can be achieved for images with 5,120 x 128 pixels. The integrated interface CoaXPress 2.0 with 4x 12.5 Gbit/s can handle the large amounts of data without latency.

The global shutter sensor used enables detailed imaging even of moving objects. It can be used in many industrial applications for the detection of defects in test parts.

In addition, due to its sensor, the Eosens 21CXP2 opens up high-speed laser triangulation systems with large scan coverage for precise 3D measurements. The use of binning increases the camera's signal-to-noise ratio, which lowers the required laser power and allows higher resolution to be achieved even with high image gain.

Company

Mikrotron GmbH

Landshuter Str. 20-22
85716 Unterschleissheim
Germany

Company contact
