16.05.2022 • Product

Easy scalability for a wide range of applications

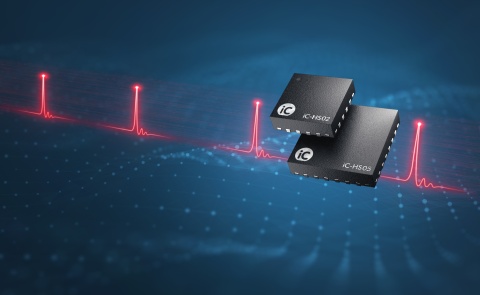

The pulse width can be set from 100 ps to 5 ns, in steps of 250 ps and a fine tuning of the pulse width with a resolution of 1 ps. The laser drivers deliver optional output currents of up to 200 mA (iC-HS02) or up to 500 mA (iC-HS05). The temperature-stabilised on-chip pulse generation and intelligent compensations on-chip ensure stable and reliable driving of laser diodes. The amplitude of the pulse current can be configured via a 10-bit D/A converter. For synchronisation with the sensor system, the device provides either an LVDS or TTL signal. The pulse laser diode driver is suitable for applications in the automotive, industrial, medical technology and security sectors and is available in two performance classes: The IC-HS05 (up to 200 mA) fits into a QFN16 chip package (3 x 3 mm), the iC-HS05 comes in a QFN24 package (up to 500 mA)



Company

iC-Haus GmbH

Am Kuemmerling 18
55294 Bodenheim
Germany
