3,500 Fps high speed camera

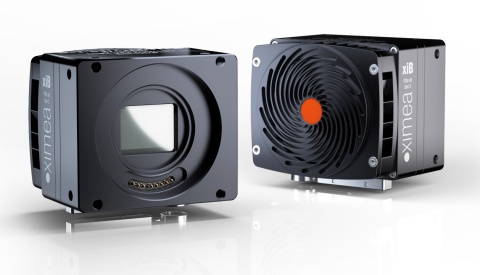

Following the release of the initial model with 12 Mpix at 333 Fps, XIMEA is now ready for orders of two additional versions with speeds up to 3500 frames per second. The fast PCIe interface allows the xiB-64 camera family to stream data at speeds as high as 64 Gbit/s over distances of up to 300m without the need of expensive frame grabbers or special, complicated software. Resolution range of this camera line starts from 1 Mpix to 16 Mpix and is further enhanced with a Canon lens EF-mount that allows remote control of aperture, focus and image stabilization. First 4K model called CB120 equipped with CMV12000 sensors from CMOSIS was introduced a while ago. With the help of new generation of PCI Express referred to as PCIe 3.0 this 12 Mpix sensor is able to reach the remarkable speed of over 330 Fps at full resolution. The camera’s data and control interface are fully compliant with PCI Express External Cabling Specifications, which allows real data throughput of 7000 MB/s - more than other industrial camera interfaces can compete with.

First of the newly available models called CB013 introduces a special, high-speed sensor from LUXIMA. These sensors have especially large 13.7µm pixels and fast data throughput with potential 3500 Fps at a full resolution of 1280 x 864. Both aspects are beneficial for high speed, low exposure time applications.
