18.03.2022 • Newslighting

Prototype of a large-area sky-blue PeLED

This new approach represents an important step to the commercial application of PeLED lighting.

The research group led by Xiao Zhengguo from the University of Science and Techno­logy of China (USTC) of the Chinese Academy of Sciences prepared large-area and efficient sky-blue perovskite light-emitting diodes (PeLEDs) by blade-coating super­saturated perovskite solution. Metal halide PeLEDs can achieve high luminance at low voltage due to their high electrical conduc­tivity, making them ideal for the next generation of energy-saving lighting.

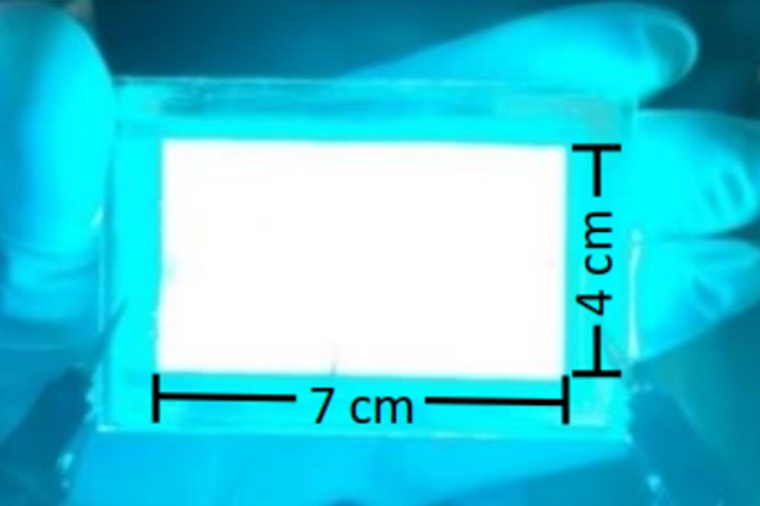

Prototype of an ultra large-area sky-blue PeLED. (Source: S. Chu et al.)
Prototype of an ultra large-area sky-blue PeLED. (Source: S. Chu et al.)

The external quantum efficiency (EQE) of red/infrared and green PeLEDs is high at present. Blue/sky-blue PeLEDs are essential for white lighting, while the EQE of blue light is relatively low. This is because the crystalli­zation process of blue/sky-blue perovs­kite film is difficult to control, which results in poor film quality. Till now, there are no reports on the formation of large-area blue/sky-blue PeLEDs. The researchers adjusted the composition of perovskite into CsPb(Br0.84Cl0.16)3 based on their previous robust perovskite blade-coating technique for red PeLEDs. They added addi­tional halide amine additives to limit the growth of perovskite grains and passi­vate the traps, to achieve the sky-blue emission.

Meanwhile, they partially replaced dimethyl sulfoxide (DMSO) with dimethyl­formamide (DMF) to obtain a more volatile and super­saturated perovskite precursor solution. Perovskite crystal nucleus will precipitate directly from inside of the super­saturated solution in the process of blade-coating, which can effec­tively increase the density of the nucleus and accelerate the process of nucleation, crystalli­zation, and film-forming, to prepare uniform perovskite films with small grains.

The EQE for blue/sky-blue PeLEDs, prepared by the blade-coating method, reached 10.3 %, and the lumines­cence uniformity and brightness in an area of 28 cm2 of the PeLEDs are both very good. This new approach represents an important step to the commer­cial appli­cation of PeLED lighting. (Source: USTC)

Reference: S. Chu et al.: Large-Area and Efficient Sky-Blue Perovskite Light-Emitting Diodes via Blade-Coating, Adv. Mat., online 28 February 2022; DOI: 10.1002/adma.202108939

Link: National Laboratory of the Physical Science at the Microscale, University of Science and Technology of China (USTC), Hefei, Anhui China
