06.03.2018 • Product

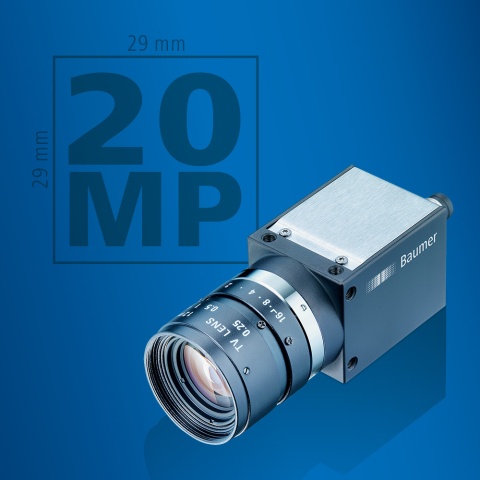

New CX Series Cameras with Rolling Shutter Sensors


The new GigE and USB 3.0 rolling shutter CX series cameras in compact 29 x 29 mm housing with latest Sony CMOS sensors deliver resolutions of up to 20 megapixel. Thanks to low noise, low heat generation and an excellent price-performance ratio, the new models are first choice for cost-sensitive applications that require low-price cameras with high resolution and image quality comparable to a global shutter sensor, reducing system cost. With GlobalReset function, which exposes all pixels simultaneously, even fast-moving objects are clearly captured at high image quality without the distortion seen with rolling shutter effects. The CX series offers more than 80 models, including IP 65/67-rated cameras with an operating temperature range from -40 °C to 70 °C, exposure times from 1 µs to 60 s and frame rates of up to 1000 fps using a ROI (Region of Interest). Resolutions from VGA up to 20 megapixels and outstanding image quality make the versatile CX series an ideal choice for cross-industry applications with the highest demands on image detail accuracy and throughput.

Company

Baumer GmbH

Pfingstweide 28
61169 Friedberg
Germany
