Precise 3D quality inspection with laser profile scanners

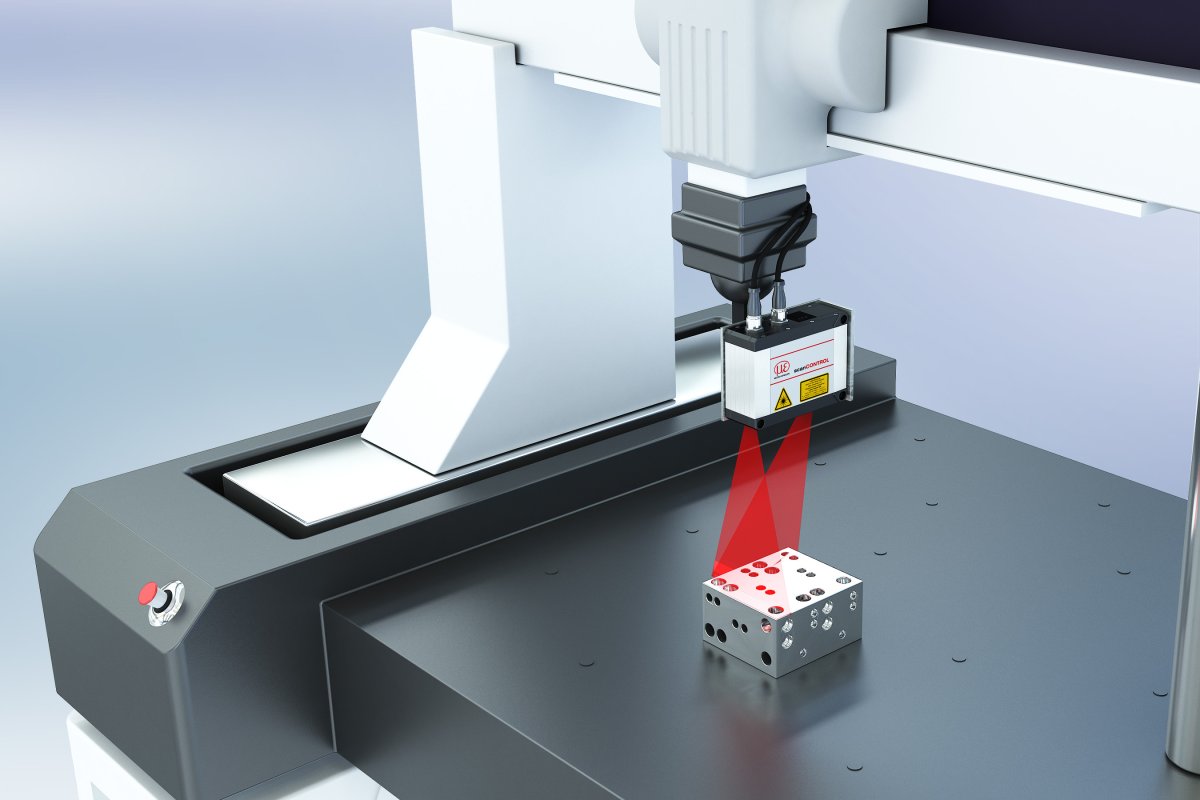

Micro-Epsilon's Scancontrol series laser profile scanners are used in coordinate measuring machines (CMM) for quality assurance and reverse engineering.

© Micro-Epsilon

A special CMM trigger output synchronizes the measurement time exactly with the measurement position, which enables measurements without time offset and increases precision when taking pictures from different directions during movement. The scanners capture the geometric shape of objects and generate 3D point clouds. The raw data is transferred to an overall coordinate system according to the GigE Vision standard, at a speed of up to 10 million points per second. The compact design, low weight and integrated controller make the scanners space-saving and flexible to use. These features enable high movement speeds and easy integration into various applications.
