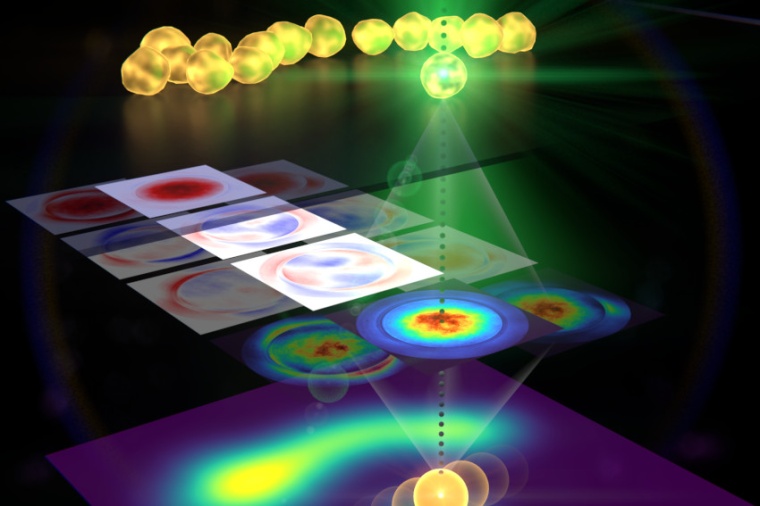

Austrian researchers have developed a new measurement and imaging approach that can resolve nano­structures smaller than the diffraction limit of light without requiring any dyes or labels. The work represents an important advance toward a new and powerful micro­scopy method that could one day be used to see the fine features of complex samples beyond what is possible with conven­tional microscopes and techniques.

The new method is a modi­fication of laser scanning micro­scopy, which uses a strongly focused laser beam to illu­minate a sample. The researchers expanded on the technique by measuring not only the brightness, or intensity, of the light after it interacts with a specimen under study, but also detecting other para­meters encoded in the light field. “Our approach could help extend the microscopy toolbox used to study nanostructures in a variety of samples,” said research team leader Peter Banzer from the University of Graz in Austria. “In comparison to super-reso­lution techniques based on a similar scanning approach, our method is fully non-invasive, meaning it doesn’t require any fluorescent molecules to be injected into a specimen before imaging.”

The researchers show that they can measure the position and sizes of gold nano­particles with an accuracy of several nanometers, even when multiple particles were touching. “Our novel approach to laser-scanning microscopy could close the gap between conventional micro­scopes with limited reso­lution and super-resolution techniques that require modi­fication of the specimen under study,” said Banzer.

In laser-scanning micro­scopy, a light beam is scanned across the sample and the transmitted, reflected or scattered light coming from the sample is measured. Although most microscopy methods measure the intensity, or brightness, of light coming from the sample, a great deal of information is also stored in other charac­teristics of the light such as its phase, polarization and the scattering angle. To capture this additional information, the researchers examined the spatial reso­lution of the intensity and polari­zation information. “The phase and polari­zation of light, together with its intensity, vary spatially in a way that incorporates fine details about the sample with which it interacts – much like the shadow of an object tells us something about the shape of the object itself,” said Banzer. “However, much of this information is ignored if only the overall light power is measured after the inter­action.”

They demons­trated the new approach by using it to study simple samples containing metallic nano­particles of different sizes. They did this by scanning the area of interest and then recording polarization and angle-resolved images of the transmitted light. The measured data was evaluated using an algorithm that creates a model of the particles that auto­matically adapts to resemble the measured data as precisely as possible. “Although the particles and their distances were much smaller than the resolution limit of many micro­scopes, our method was able to resolve them,” said Banzer. “In addition, and even more impor­tantly, the algorithm was able to provide other parameters about the sample such as the precise size and position of the particles.”

The researchers are now working to adapt the method so that it could be used with more complex samples. The func­tionality of the approach can also be expanded by tailoring the structure of the light that interacts with the sample and incor­porating artificial intelli­gence-based approaches into the image processing steps. On the detection side, the researchers are currently developing a special camera as part of the European project SuperPixels. This next-generation detection device will be capable of resolving polari­zation and phase information in addition to intensity. “Our study is another demonstration of the pivotal role that the structure of light can play in the field of optics and light-based techno­logies,” said Banzer. “Many intriguing appli­cations and phenomena have been demons­trated already, but there is more to come.” (Source: Optica)

Reference: J. S. Eismann & P. Banzer: Sub-diffraction-limit Fourier-plane laser scanning microscopy,” Optica 9, 4 (2022);
DOI: 10.1364/OPTICA.450712

Link: Optics of Nano and Quantum Materials (P. Banzer), University of Graz, Graz, Austria • EU project “Super-Pixels”, Horizon 2020, EU, Brussels
