Understanding the nitty gritty of how molecules interact with each other in the real, messy, dynamic environ­ment of a living body is a challenge that must be overcome in order to understand a host of diseases, such as Alzheimer’s. Until now, researchers could capture the motion of a single molecule, and they could capture its rotation but only by compro­mising 3D resolution. Now, the lab of Matthew Lew at the McKelvey School of Engineering at Washington University in St. Louis has developed an imaging method that provides an unpre­cedented look at a molecule as it spins and rolls through liquid, providing the most compre­hensive picture yet of molecular dynamics collected using optical micro­scopes.

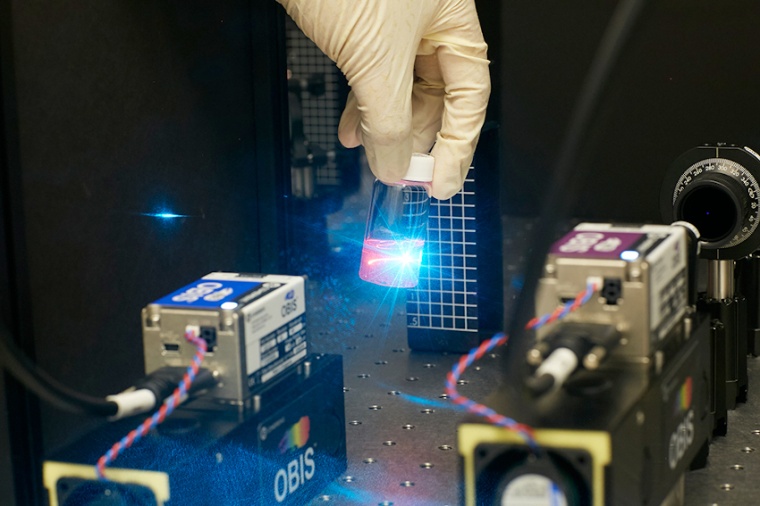

Lew’s lab is the first to be able to visualize the orientation and direc­tion of a molecule’s rotational movement – how it spins and wobbles – while it’s in a liquid system. The new imaging techno­logy, a vortex microscope, relies on a particular type of light: a polarized optical vortex. “You can bend the light in a certain way so that the photons are spinning along their path,” Lew said. Instead of a straight beam of light, this optical vortex is shaped more like a corkscrew. It’s created by shining light through a helical-shaped lens, the top of which is uneven, sloping downward into a spiral. The micro­scope also splits the light into two different directions of polari­zation, providing insight into the direction of the wobble of nano-sized light sources, the molecules in the sample.

For their experiments, Lew and Tianben Ding looked at amyloid beta fibers. Clumps of these proteins, found in the brain, are asso­ciated with Alzheimer’s disease. The team added fluorescent tracer molecules to the fibers. The tracers’ job was to probe the surfaces of the amyloid beta fibers. Each time a tracer bumped into a fiber, it emitted a light. The light carried information about its inter­action with the fiber. After it passed through the lens, that information was trans­lated by an algorithm developed by Lew’s team.

An optical vortex is not a point of light, but it’s spread out in more of a donut shape. Based on the donut’s properties – is it stretched out along a certain axis, or darker in some places – the algorithm can infer seven distinct properties of the tracer molecule, including its position and direction. Lew said he and Ding were surprised when a computer simu­lation suggested an optical vortex might open up an oppor­tunity to see motion and details at once. “In our field, we’re always trying to think about concentrating the light because our light sources are so weak,” Lew said. “It was surprising that spreading the light out into a donut shape would be useful at all.”

Because the team used a polarized optical vortex, they also can deter­mine the direction of the wobble, a novel ability of the vortex micro­scope. The ways in which the molecule interacts with the fiber can, in turn, help paint a picture of the fiber’s motion and topology. Putting it all together, the vortex micro­scope offers a detailed look into how the surfaces of these amyloid beta fibers interact with each other and how their surfaces affect whether or not they begin to aggregate. “This is the first time we can measure these very detailed dynamics of how molecules move and rotate inside liquid systems,” Lew said. (Source: WUSTL)

Reference: T. Ding & M. D. Lew: Single-Molecule Localization Microscopy of 3D Orientation and Anisotropic Wobble Using a Polarized Vortex Point Spread Function, J. Phys. Chem. B 125, 12718 (2021); DOI: 10.1021/acs.jpcb.1c08073

Link: Lew Lab, Dept. of Electrical and Systems Engineering, Washington University in St. Louis, St. Louis, USA
