Researchers have developed a new analog photonic corre­lator that can be used to locate an object trans­mitting a radio signal. Because the new correlator is faster than other methods and works with a wide range of radio frequency signals, it could be useful for locating cell phones, signal jammers or a variety of tracking tags. “The photonic architecture we developed uses no moving parts and enables real-time signal pro­cessing,” said Hugues Guillet de Chatellus from Université Grenoble Alpes-CNRS in France. “Real-time pro­cessing helps ensure there isn’t any downtime, which is critical for defense appli­cations, for example.”

Now, Guillet de Chatellus and colleagues describe the new photonic correlator and demonstrate its ability to identify the location of a radio frequency transmitter. The device is consi­derably simpler than today’s analog or digital corre­lators and uses off-the-shelf telecommuni­cations components. “Many of today’s radio signals have large bandwidths because they carry a great deal of information,” said Guillet de Chatellus. “Our photonic approach offers a simple method for corre­lating signals with bandwidths of up to a few GHz, a larger bandwidth than is available from commer­cial approaches based on purely digital techniques.”

The new photonic correlator can be used to compute a cross-corre­lation function for two signals emitted from one source and detected by two antennas. This measures the simi­larity of the signals as a function of the displacement of one signal relative to the other and provides information about their relative delay, which can be used to calculate the location of the signal’s source. “The photonic archi­tecture we developed enables real-time calcu­lation of the cross-corre­lation function of two input signals for about 200 values of relative delay simul­taneously,” said Guillet de Chatellus. “This is much higher than any photonic technique has been able to accomplish so far.”

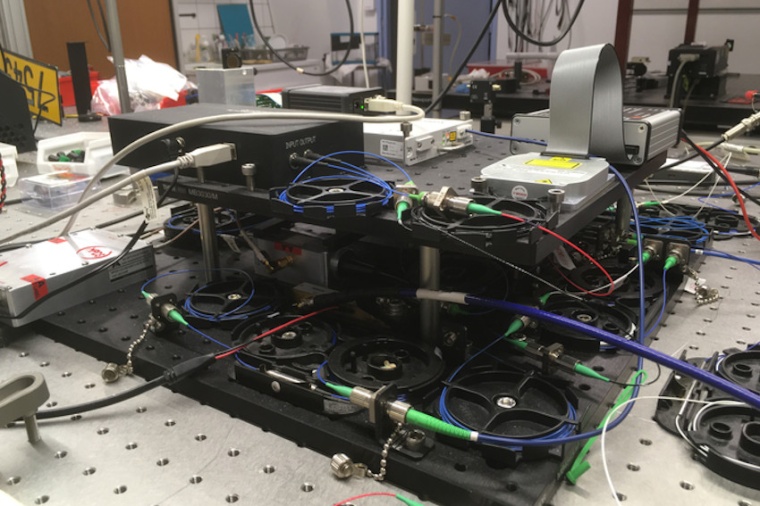

The correlator works like a photonic processor by using fiber optic components to turn two radio-frequency signals into optical signals. Once the cross-corre­lation function is calcu­lated, a detection and processing chain enables it to be converted into a digital format. The most critical component of the new system is a frequency shifting loop, which can generate and manipulate a large number of time-shifted replicas for an input signal. This simple photonic component has enabled many recent inno­vations in microwave photonics.

“We’ve been deve­loping frequency shifting loops for some time, and a deep under­standing of their archi­tecture led us to apply them to this new appli­cation,” said Guillet de Chatellus. “This work shows that photonics can offer efficient alter­natives to solutions that are based on digital elec­tronics.”

After testing their new device using high-power simple signals, the researchers tested it with more complex signals and then moved to signals propa­gating through free space and received by a pair of antennas. The researchers were able to demonstrate locali­zation of a radio­frequency transmitter with a precision close to 10 picoseconds for a 100-millisecond inte­gration time. This means that the system could locate an emitter with a precision of about 3 millimeters.

The new analog photonic corre­lator can also be used in astronomy to cross-correlate signals coming from several telescopes to create high-resolution images. In the coming months, the researchers plan to work on a demons­tration experiment in which signals emitted from the sun at around 10 GHz will be collected by two remote antennas and cross-correlated using the new photonic device to create an image of the sun at radio-wavelength.

If these experi­ments are successful, this device could initiate infrared applications in astronomy facilities, such as the Very Large Telescope Inter­ferometer in Chile, using heterodyne inter­ferometry. Heterodyne interferometry has been used for radio-inter­ferometry but was previously limited to narrow correlation bandwidths.The researchers are also performing experiments to find out if the new photonic correlator can be used to correlate three signals, which would enable 3D locali­zation of trans­mitters by triangulation. They also plan further work to minia­turize and fully integrate the correlator. (Source: Optica)

Reference: G. Bourdarot et al.: Multi-delay photonic correlator for wideband RF signal processing, Optica 9, 325 (2022); DOI: 10.1364/OPTICA.442906

Link: Laboratoire Interdisciplinaire de Physique, UGA/CNRS, Grenoble, France
