Lasers are essential tools for observing, detecting, and measuring things in the natural world that we can’t see with the naked eye. But the ability to perform these tasks is often restricted by the need to use expensive and large instruments. Now, researcher Qiushi Guo, City University of New York, demonstrates a novel approach for creating high-performance ultrafast lasers on nano­photonic chips. His work centers on minia­turizing mode-lock lasers – a unique laser that emits a train of ultrashort, coherent light pulses in femtosecond intervals.

Ultrafast mode-locked lasers are indispensable to unlocking the secrets of the fastest timescales in nature, such as the making or breaking of molecular bonds during chemical reactions, or light propagation in a turbulent medium. The high-speed, pulse-peak intensity and broad-spectrum coverage of mode-locked lasers have also enabled numerous photonics techno­logies, including optical atomic clocks, biological imaging, and computers that use light to calculate and process data. Unfor­tunately, state-of-the-art mode-locked lasers are currently expensive, power-demanding tabletop systems that are limited to laboratory use.

“Our goal is to revo­lutionize the field of ultrafast photonics by transforming large lab-based systems into chip-sized ones that can be mass produced and field deployed,” said Guo, a faculty member with the CUNY Advance Science Research Center’s Photonics Initia­tive. “Not only do we want to make things smaller, but we also want to ensure that these ultrafast chip-sized lasers deliver satis­factory per­formances. For example, we need enough pulse-peak intensity, preferably over 1 Watt, to create meaningful chip-scale systems.”

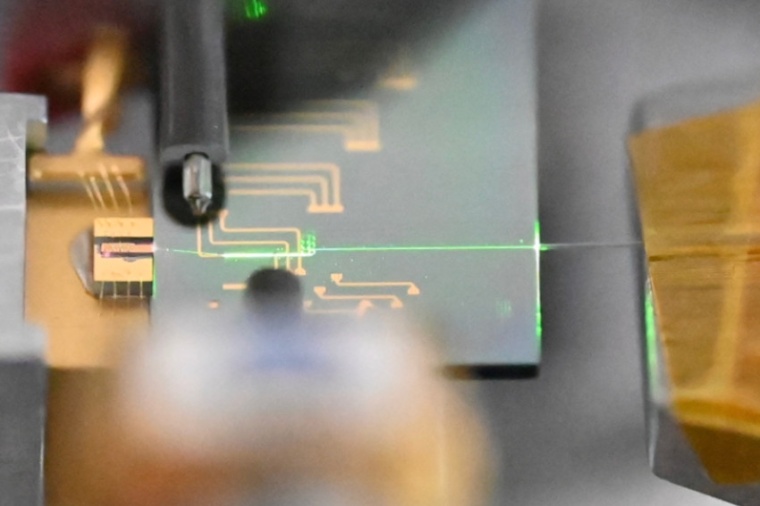

Realizing an effective mode-locked laser on a chip is not a straight­forward process, however. Guo's research leverages an emerging material platform known as thin-film lithium niobate (TFLN). This material enables very efficient shaping and precise control of laser pulses by applying an external radio frequency electrical signal. In their experiments, Guo’s team uniquely combined the high laser gain of III-V semi­conductors and the efficient pulse shaping capability of TFLN nanoscale photonic waveguides to demonstrate a laser that can emit a high output peak power of 0.5 Watt.

Beyond its compact size, the demonstrated mode-locked laser also exhibits many intriguing properties that are beyond reach by conventional ones, offering profound impli­cations for future applications. For example, by adjusting the pump current of the laser, Guo was able to precisely tune the repetition fre­quencies of out pulses in a very wide range of 200 megahertz. By employing the strong recon­figurability of the demonstrated laser, the research team hopes to enable chip-scale, frequency-stabilized comb sources, which are vital for precision sensing.

Guo’s team will need to address additional challenges to realize scalable, integrated, ultrafast photonic systems that can be translated for use in portable and handheld devices, but his lab has overcome a major obstacle with this current demons­tration. “This achievement paves the way for eventually using cell phones to diagnose eye diseases or analyzing food and environ­ments for things like E. coli and dangerous viruses,” Guo said. “It could also enable futuristic chip-scale atomic clocks, which allows navigation when GPS is compromised or unavailable.” (Source: CUNY)

Reference: Q. Guo et al.: Ultrafast mode-locked laser in nanophotonic lithium niobate, Science 382, 708 (2023); DOI: 10.1126/science.adj5438

Link: Photonics Initiative, Advanced Science Research Center, City University of New York, New York, USA
