In the very near future, quantum computers are expected to revolutionize the way we compute, with new approaches to database searches, AI systems, simulations and more. But to achieve such novel quantum technology appli­cations, photonic integrated circuits which can effectively control photonic quantum states – the qubits – are needed. Physicists from the Helmholtz-Zentrum Dresden-Rossen­dorf (HZDR), TU Dresden and Leibniz-Institut für Kristall­züchtung (IKZ) have made a big step forward in this effort: for the first time, they demons­trated the controlled creation of single-photon emitters in silicon at the nanoscale.

A photonic integrated circuit (PIC) provides functions for information signals imposed on optical wavelengths typically in the near infrared spectrum. “Actually, these PICs with many integrated photonic components are able to generate, route, process and detect light on a single chip”, says Georgy Astakhov, Head of Quantum Techno­logies at HZDR's Institute of Ion Beam Physics and Materials Research, and adds: “This modality is poised to play a key role in upcoming future techno­logy, such as quantum computing. And PICs will lead the way.”

Before, quantum photonics experiments were notorious for the massive use of bulk optics distributed across the optical table and occupying the entire lab. Now, photonic chips are radically changing this landscape. Miniaturi­zation, stability and suitability for mass production might turn them into the workhorse of modern-day quantum photonics. Monolithic integration of single-photon sources in a controllable way would give a resource-efficient route to implement millions of photonic qubits in PICs. To run quantum compu­tation protocols, these photons must be indis­tinguishable. With this, industrial-scale photonic quantum processor production would become feasible. However, the currently established fabrication method stands in the way of the compa­tibility of this promising concept with today's semi­conductor technology.

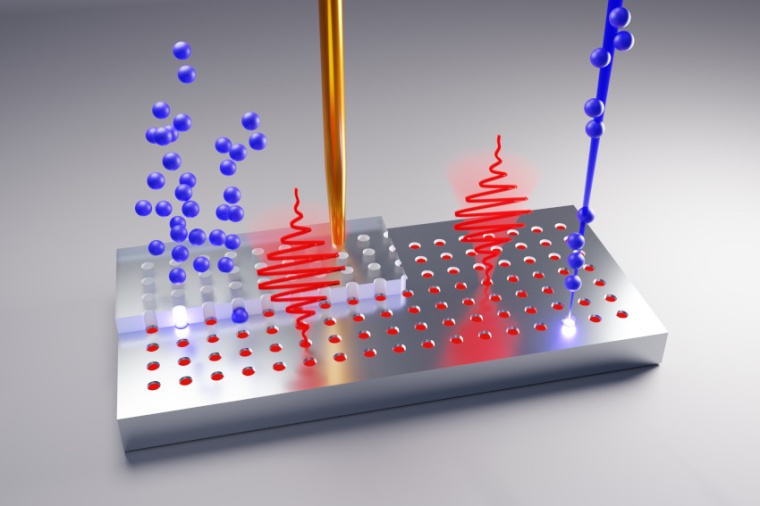

In a first attempt reported about two years ago, the researchers were already able to generate single photons on a silicon wafer, but only in a random and non-scalable way. Since then, they have come far. “Now, we show how focused ion beams from liquid metal alloy ion sources are used to place single-photon emitters at desired positions on the wafer while obtaining a high creation yield and high spectral quality”, says Nico Klingner. Further­more, the scientists subjected the same single-photon emitters to a rigorous material testing program: After several cooling-down and warming-up cycles, they did not observe any degradation of their optical properties. These findings meet the precon­ditions required for mass production later on.

To translate this achievement into a widespread technology, and allow for wafer-scale engineering of individual photon emitters on the atomic scale compatible with established foundry manufacturing, the team implemented broad-beam implantation in a commercial implanter through a litho­graphically defined mask. “This work really allowed us to take advantage of the state-of-the-art silicon processing cleanroom and electron beam lithography machines at the Nano Fabri­cation facility Rossendorf”, explains Ciarán Fowley, Cleanroom group leader and Head of Nanofabrication and Analysis. Using both methods, the team can create dozens of telecom single-photon emitters at predefined locations with a spatial accuracy of about 50 nanometers. They emit in the strategi­cally important tele­communication O-band and exhibit stable operation over days under continuous-wave excitation.

The scientists are convinced that the realization of controllable fabri­cation of single-photon emitters in silicon makes them a highly promising candidate for photonic quantum technologies, with a fabri­cation pathway compatible with very large-scale integration. These single-photon emitters are now techno­logically ready for production in semiconductor fabs and incorporation into the existing telecommuni­cation infra­structure. (Source: HZDR)

Reference: M. Hollenbach et al.: Wafer-scale nanofabrication of telecom single-photon emitters in silicon, Nat. Commun. 13, 7683 (2022); DOI: 10.1038/s41467-022-35051-5
