Color correction deep into the blue spectral range

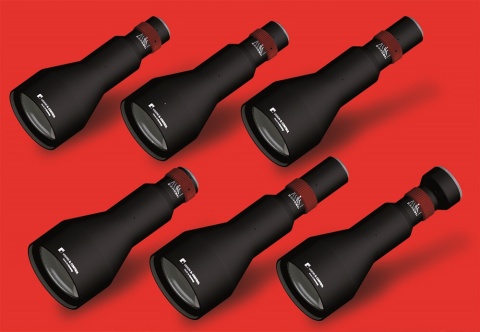

With the TO66 series, Vision & Control is expanding its family of telecentric lenses in the Blue Vision range to include six high-resolution, high-speed versions with 66 mm object field diameters.

Since their beam paths are parallel on the object side, they provide images without perspective distortions.With Blue Vision optics, color correction is extended deep into the blue spectral range. Due to the low diffraction, viewing with very high resolution is therefore possible. This also applies to white LED illumination, since this light has a very high blue content. But also up to the near infrared range precise observations are possible with these objectives.

The TO66 objectives are designed for robust industrial use.They are available with different field diameters - staggered from 6.0 mm to 28.5 mm. The working distances vary from 240 mm for the smallest image field diagonal to 120 mm for the largest. The aperture can be variably set and locked between F/8 and F/22, or F/10 to F/22. If strong vibrations are to be expected at the location of use, all lenses are also available in a vibration-resistant version with a fixed aperture.
